NEMA 4型外殼，用于法蘭安裝式電自動斷開接頭

SCE-HS Series Electrical Disconnect Enclosure

^￥10,595.41 SCE-24HS2108LP

下單

0.075" Carbon Steel
Seams Continuously Welded and Ground Smooth
Continuous Hinge With Stainless Steel Hinge Pin
Stainless Steel Clamps On 3 Sides of Door
Flange Trough Collar Around All Sides of Door Opening
Interior Print Pocket
Collar Studs Provided for Mounting Optional Panels
Oil-Resistant Gasket
Disconnect Cutout Provided on Flange
Ground Stud On Door
No Door Stiffener Required
Disconnect Switch (or Circuit Breaker) and Operating Mechanism Are Not Furnished with This Enclosure

NEMA標準外殼 - 查看相關產品

產品描述

Application
SCE-HS SERIES DISCONNECT ENCLOSURE TYPE E
Designed to house most standard type disconnects. For outdoor application a drip shield is recommended.

Finish
ANSI-61 gray powder coating inside and out over phosphatized surfaces. Optional panels are powder coated white.

Industry Standards
NEMA Type 4, 12 & 13
UL Listed Type 4 & 12
CSA Type 4 & 12
IEC 60529 IP 66

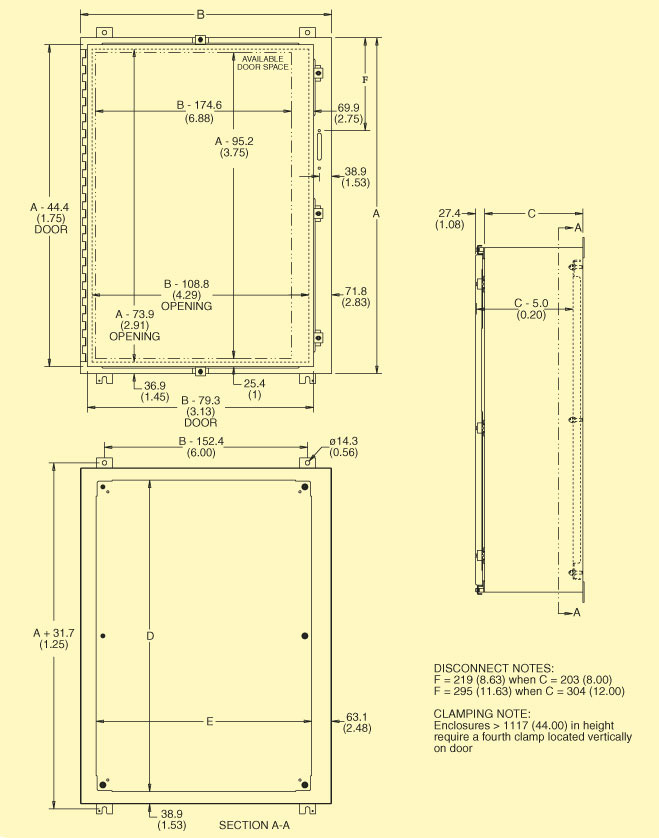

SCE_HS Series Diagram

訂購所有價格均為人民幣稅前價格，不包括13%增值稅和運費！(指定型號)

其他客戶同時購買: 這個圖標可以點擊擴大，跳出的清單包括了其他客戶在購買此產品時同時購買的其它產品。

產品編號產品描述

數量

產品描述

Electrical Disconnect Enclosures - sub-panels and disconnects sold separately

SCE-24HS2108LP

￥10,595.41

貨期: 5 周

24"H x 21.38"W x 8"D

SCE-24P20

￥1,131.50

貨期: 5 周

Sub-panel for 24x21

SCE-24HS2508LP

￥11,494.05

貨期: 5 周

24"H x 25.38"W x 8"D

SCE-24P24

￥1,240.55

貨期: 5 周

Sub-panel for 24x25

Enclosures below must ship by Truck Freight

SCE-30HS2508LP

￥12,747.95

貨期: 5 周

304"H x 25.38"W x 8"D

SCE-30P24

￥1,438.23

貨期: 5 周

Sub-panel for 30x25

SCE-36HS2508LP

￥13,500.27

貨期: 5 周

36"H x 25.38"W x 8"D

SCE-36P24

￥1,813.11

貨期: 5 周

Sub-panel for 36x25

SCE-36HS3108LP

￥15,673.69

貨期: 5 周

36"H x 31.38"W x 8"D

SCE-36HS3112LP

￥17,387.33

貨期: 5 周

36"H x 31.38"W x 12"D

SCE-36P30

￥2,426.55

貨期: 5 周

Sub-panel for 36x31

SCE-42HS3112LP

￥19,094.03

貨期: 5 周

42"H x 31.38"W x 12"D

SCE-42P30

￥2,869.61

貨期: 5 周

Sub-panel for 42x31

SCE-42HS3712LP

￥21,330.14

貨期: 5 周

42"H x 37.38"W x 12"D

SCE-42P36

￥3,278.57

貨期: 2 周

Sub-panel for 42x37

SCE-48HS3712LP

￥23,134.35

貨期: 5 周

48"H x 37.38"W x 12"D

SCE-48P36

￥3,455.80

貨期: 5 周

Sub-panel for 48x37

SCE-60HS3712LP

￥26,854.23

貨期: 5 周

60"H x 37.38"W x 12"D

SCE-60P36

￥4,962.16

貨期: 5 周

Sub-panel for 60x37

Drip Shield Kit - includes SS screws and sealing washers

SCE-DS20N4

￥1,027.20

貨期: 5 周

for 21" wide electrical enclosures

SCE-DS24N4

￥1,139.66

貨期: 5 周

for 25" wide electrical enclosures

SCE-DS30N4

￥1,165.59

貨期: 5 周

for 31" wide electrical enclosures

SCE-DS36N4

￥1,179.21

貨期: 5 周

for 37" wide electrical enclosures

† 所有金額以RMB顯示
訂購示例: (1) SCE - 24HS2108LP Enclosure, Height=24 inches, W=21.38 inches, Depth=8 inches, ￥10,595.41
